Found 37 intraocular lenses.

Visible columns:

Important specifications
All specifications
Constants only

Specifications
Available powers
Manufacturer constants
Optimized constants

all	Intraocular Lens			Specifications										Available Powers				Manufacturer Optimized / ULIB Constants						Our Optimized Constants
all	Image	Lens Name	Comment / Trade Name	Single Piece	Optic Material	Haptic Material	Preloaded	Foldable	Incision Width [mm]	Injector Size [mm]	Hydrophilic/ -phobic	Filter	Refractive Index	Abbe Number	Achromatic	Optic Ø [mm]	Haptic Ø [mm]	Optic Concept	Haptic Design	Intended Location	Optic Design	Sph. Aberration	SA Correction [µm]	Toric	Sphere (increment) [D]	Cylinder (increment) [D]	Near Addition [D]	Intermediate Addition [D]	Nominal (A)	Haigis (a₀ / a₁ / a₂)	Hoffer Q/QST (pACD)	Holladay 1 (SF)	SRK/T (A)	Barrett (LF / DF)	Haigis (a₀ / a₁ / a₂)	Hoffer Q (pACD)	Holladay 1 (SF)	SRK/T (A)	Castrop (C / H / R)	Cooke K6 (A)	Olsen (ACD)
Bausch + Lomb

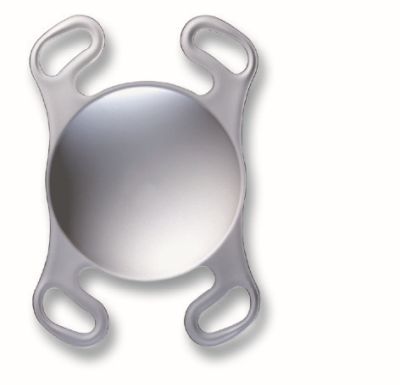

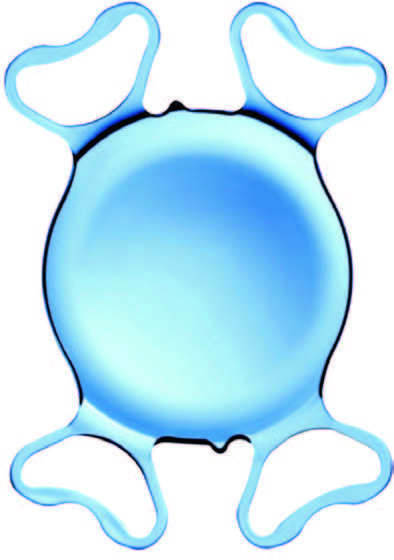

		Akreos Adapt	Model: Adapt	✘ no	acrylic	acrylic		✘ no	2.2		hydrophilic	clear	1.46			6.0	11.0	monofocal	four-point-haptic	capsular bag	asphere	neutral			0to30(1) 10to30(0.5)				118.0¹	0.96 0.4 0.1¹	5.14¹	1.4¹	118.4¹

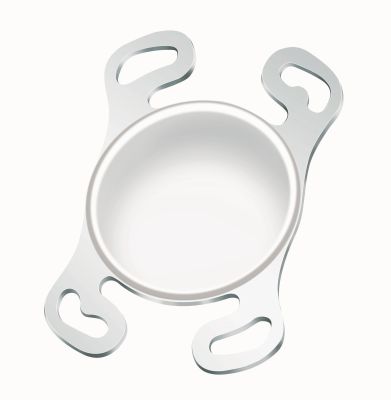

		Akreos Adapt AO	Models: Adapt-AO AO60 AO60PL AO60PLC		acrylic				2.2		hydrophilic	clear	1.46			6.0	11.0	monofocal	four-point-haptic	capsular bag	sphere				0to30(1) 10to30(0.5)				118.0¹	-0.83 0.305 0.191¹	5.26¹	1.51¹	118.5¹	1.62 0.0¹
		Akreos MICS	Models: MI60 MI60L MI60PL MI60PLC	✔ yes	acrylic		✘ no	✔ yes	1.8		hydrophilic	clear	1.46					monofocal	four-point-haptic	capsular bag	asphere	neutral		✘ no	0to30(1) 10to30(0.5)				118.4¹	1.49 0.4 0.1¹	5.67¹	1.9¹	119.1¹	1.94 0.0¹
		Apthera IC-8		✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.483		✘ no	6.0	12.5	EDoF		capsular bag	asphere			✘ no	10to30(0.5)				120.5¹	2.302 0.4 0.1¹	6.42¹	2.64¹	120.5¹	2.67 0.0¹
		Crystalens AO1V	Model: AO1UV	✘ no	silicone	PMMA		✔ yes			hydrophobic	ultraviolet	1.43			5.0	11.5		Accomodative	capsular bag	asphere	neutral			17to22(0.25) 22.5to33(0.5)				119.1¹		5.61¹		119.1¹	1.94 1.0¹
		Crystalens AO2V	Model: AO2UV	✘ no	silicone	PMMA		✔ yes			hydrophobic	ultraviolet	1.43			5.0	12.0		Accomodative	capsular bag	asphere	neutral			4to10(1) 10.5to24(0.5)				119.1¹		5.61¹		119.1¹	1.94 1.0¹
		(enhanced) enVista	see enVista models	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic	clear	1.53	42.0		6.0	12.5	monofocal	C loop	capsular bag	asphere	neutral		✘ no	0to10(1) 10to30(0.5) 30to34(1)				118.7¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		(enhanced) enVista toric	See enVista models	✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophobic	clear	1.53	42.0		6.0	12.5	monofocal	C loop	capsular bag	asphere	neutral		✔ yes	6to30(0.5)	1.25to5.75(0.75)			118.7¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		enVista	Models: MX60 MX60E MX60PL MX60PLC EE EPE EC20E EC24E	✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophobic	clear	1.54	40.5		6.0	12.5	monofocal	C loop	capsular bag	asphere	neutral		✘ no	0to34(1) 10to30(0.5)				118.2¹	1.46 0.4 0.1¹	5.68¹	1.91¹	119.2¹	1.94 0.0¹	0.3032 0.3023 0.1689^{3, N}	5.802^{3, N}	1.999^{3, N}	119.275^{3, N}	0.3688 0.1554 -0.1246^{3, N}	119.294^{4, N}	4.944^{3, N}
		enVista Aspire	Models: EA EPA EC20A EC24A	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	monofocal		capsular bag	asphere	neutral			6to34(0.5)				119.1¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		enVista Aspire Toric	Models: ETA ETPA ETC20A ETC24A	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	monofocal		capsular bag	asphere	neutral		✔ yes	6to34(0.5)	0.9to1.25(0.35) 1.5to3.5(0.5) 4.25to5.75(0.75)			119.1¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		enVista Beyond	Models: EY EPY EC20Y EC24Y	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	EDoF		capsular bag	asphere	neutral		✘ no	6to34(0.5)				119.1¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		enVista Beyond Toric	Models: ETY ETPY ETC20Y ETC24Y	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	EDoF		capsular bag	asphere	neutral		✘ no	6to34(0.5)				119.1¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 0.0¹
		enVista enhanced (MX60E)	MX60E	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic		1.53	42.0	✘ no	6.0	13.0	monofocal	C loop	capsular bag	asphere	neutral		✘ no	0to10(1) 10to30(0.5) 30to34(1)				118.2¹	1.46 0.4 0.1¹	5.61¹	1.85¹	119.1¹	1.94 –¹
		enVista Envy	Models: EN EPN EC20N EC24N	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	multifocal		capsular bag	asphere	correcting			6to10(1) 10to34(0.5)		3.1	1.6	119.5¹	1.64 0.4 0.1¹	5.84¹	2.06¹	119.5¹	2.15 0.0¹
		enVista Envy Toric	Models: ETN ETPN ETC20N ETC24N	✔ yes	acrylic			✔ yes			hydrophobic	ultraviolet	1.53	42.0	✘ no	6.0	12.5	multifocal		capsular bag	asphere	correcting		✔ yes	6to34(0.5)	0.9to1.25(0.35) 1.5to3.5(0.5) 4.25to5.75(0.75)	3.1	1.6	119.5¹	2.14 0.4 0.1¹	5.84¹	2.06¹	119.5¹	2.15 0.0¹
		enVista toric	Models: MX60T MX60ET MX60PT MX60PTC ETE ETPE ETC20E ETC24E	✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophobic	clear	1.54	40.5		6.0	12.5	monofocal	C loop	capsular bag	asphere	neutral		✔ yes	6to30(1) 10to30(0.5)	1.25to5.75(0.75)			118.0¹	1.46 0.4 0.1¹	5.68¹	1.91¹	119.2¹	1.94 0.0¹
		Eye-CEE	EYECPRE	✘ no	acrylic	PMMA	✔ yes	✔ yes	2.8		hydrophobic	clear	1.52			6.0	12.5	monofocal	C loop	capsular bag	sphere			✘ no	10to30(0.5)				118.8¹	1.55 0.4 0.1¹	5.74¹	1.95¹	119.2¹
		EyeCee One	EYEC1	✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophobic	yellow	1.52			6.0	13.0	monofocal	C loop	capsular bag	asphere	correcting	-0.14	✘ no	1to30(1) 10to27(0.5)				118.4¹	1.675 0.4 0.1¹	6.0¹	2.13¹	119.7¹	2.25 0.0¹	1.8151 0.4 0.1³	5.904³	2.143³	119.603³
		EyeCee One CRYSTAL	EYEC1CRY	✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophobic	clear	1.52			6.0	13.0	monofocal	C loop	capsular bag	asphere	correcting	-0.14	✘ no	1to30(1) 10to27(0.5)				118.4¹	1.675 0.4 0.1¹	6.0¹	2.13¹	119.7¹	2.25 0.0¹	1.8151 0.4 0.1³	5.904³	2.143³	119.603³
		EyeCee One CRYSTAL Preloaded	EYEC1NPC	✘ no	acrylic		✘ no	✘ no	2.2		hydrophobic	clear	1.52			6.0	13.0	monofocal	C loop	capsular bag	asphere	correcting	-0.13		1to5(1) 5to27(0.5) 27to30(1)				118.4¹	1.675 0.4 0.1¹	6.0¹	2.13¹	119.7¹	2.25 0.0¹	1.8151 0.4 0.1³	5.904³	2.143³	119.603³
		EyeCee One Preloaded	EYEC1NP	✘ no	acrylic		✘ no	✘ no	2.2		hydrophobic	yellow	1.52			6.0	13.0	monofocal	C loop	capsular bag	asphere	correcting	-0.13		1to5(1) 5to27(0.25) 27to30(1)				118.4¹	1.675 0.4 0.1¹	6.0¹	2.13¹	119.7¹	2.25 0.0¹	1.8151 0.4 0.1³	5.904³	2.143³	119.603³
		INCISE	MJ14T	✔ yes	acrylic		✘ no	✔ yes	1.4		hydrophilic	clear	1.47			6.0	11.0	monofocal	four-point-haptic	capsular bag	asphere	neutral		✘ no	0to30(1) 10to30(0.5)				118.4¹	1.35 0.4 0.1¹	5.51¹	1.75¹	118.9¹
		Loop Guardian	B60130S	✔ yes	PMMA		✘ no	✘ no	6.5			clear	1.49			6.0	13.0	monofocal	S loop	anterior chamber	sphere			✘ no	6to30(0.5)					-1.802 0.4 0.1¹	2.81¹	-0.87¹	114.3¹	-0.58 5.5¹
		Loop Keeper	TP613	✘ no	acrylic	PVDF	✘ no	✔ yes	3.0		hydrophilic	clear	1.46			6.0	13.0	monofocal	C loop	capsular bag	sphere			✘ no	6to9(1) 9to30.25(0.5)					0.647 0.4 0.1¹	4.97¹	1.22¹	118.0¹	1.36 0.5¹
		LuxGood	YGood	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic	yellow	1.54			6.0	11.0	monofocal		capsular bag	asphere	neutral		✘ no	0to10(1) 10to34(0.5)				119.2¹	2.027 0.4 0.1¹	5.67¹	1.9¹	119.2¹	1.99 –¹	1.6585 0.4 0.1³	5.735³	1.988³	119.264³
		LuxGood crystal	Good	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic	ultraviolet	1.54			6.0	11.0	monofocal		capsular bag	asphere	neutral		✘ no	0to10(1) 10to34(0.5)				119.2¹	2.027 0.4 0.1¹	5.67¹	1.9¹	119.2¹	1.99 –¹	1.6585 0.4 0.1³	5.735³	1.988³	119.264³
		LuxSmart	YSmart	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic	yellow	1.54		✘ no	6.0	11.0	EDoF		capsular bag	asphere	neutral		✘ no	0to10(1) 10to34(0.5)				119.2¹	1.045 0.4 0.1¹	5.23¹	1.48¹	118.5¹	1.57 –¹	0.5176 0.3709 0.1204^{3, N}	5.102^{3, N}	1.347^{3, N}	118.31^{3, N}
		LuxSmart crystal	Smart	✔ yes	acrylic		✔ yes	✔ yes	2.2		hydrophobic	clear	1.54		✘ no	6.0	11.0	EDoF		capsular bag	asphere	neutral		✘ no	0to10(1) 10to34(0.5)				119.2¹	1.045 0.4 0.1¹	5.23¹	1.48¹	118.5¹	1.57 –¹	0.5176 0.3709 0.1204^{3, N}	5.102^{3, N}	1.347^{3, N}	118.31^{3, N}
		LuxSmart toric	YSMARTT	✔ yes	acrylic		✔ yes	✔ yes	2.2	2.2	hydrophobic	ultraviolet	1.54		✘ no	6.0	11.0	EDoF		capsular bag	asphere	neutral		✔ yes	6to10(1) 10to30(0.5) 30to34(1)	0.75to6(0.75) 0.75to1(0.25)		1.5	119.2¹	1.045 0.4 0.1¹	5.23¹	1.48¹	118.5¹	1.57 –¹
		Quatrix Evolutive		✔ yes	acrylic		✔ yes	✔ yes	2.8		hydrophilic	clear	1.465			6.14	10.8	monofocal	four-point-haptic	capsular bag	asphere	correcting	-0.1	✘ no	10to30(0.5)				119.6¹	1.91 0.4 0.1¹	6.04¹	2.28¹	119.8¹
		S1 IOL	HF600	✔ yes	acrylic		✘ no	✔ yes	1.5		hydrophobic	clear	1.48			6.0	13.0	monofocal	C loop	capsular bag	sphere			✘ no	5to30(0.5)				118.6¹	1.2 0.4 0.1¹	5.43¹	1.63¹	118.6¹	1.67 –¹
		SoFlex SE	Model: LI61SE	✘ no	silicone	PMMA	✘ no	✔ yes	2.2		hydrophobic	clear	1.43			6.0	13.0	monofocal	C loop	capsular bag	asphere	neutral		✘ no	0to34(1) 5to30(0.5)				118.0¹	0.057 0.186 0.171¹	5.29¹	1.51¹	118.5¹	1.66 0.0¹
		SofPort AO	Model: LI61AO	✘ no	silicone	PMMA	✔ yes	✔ yes	2.2		hydrophobic	clear	1.43			6.0	13.0	monofocal	C loop	capsular bag	asphere	neutral		✘ no	0to34(1) 5to30(0.5)				118.0¹	0.057 0.186 0.171¹	5.29¹	1.51¹	118.5¹	1.66 0.0¹
		Trugling	See Trulign model	✘ no	silicone	PMMA		✔ yes			hydrophobic	ultraviolet	1.43			5.0	11.5		Accomodative	capsular bag	asphere	neutral		✔ yes	4to10(1) 10.5to33(0.5)	1.25to2.75(0.75)			119.1¹		5.61¹		119.1¹	1.94 1.0¹
		Trulign Toric	Model: BL1UT	✘ no	silicone	PMMA		✔ yes			hydrophobic	ultraviolet	1.43			5.0	11.5		Accomodative	capsular bag	asphere	neutral		✔ yes	4to10(1) 10.5to33(0.5)	1.25to2.75(0.75)			119.1¹		5.61¹		119.1¹	1.94 1.0¹
		Versario Classic		✔ yes	acrylic		✘ no	✔ yes	2.2		hydrophilic	clear	1.465			6.5	12.5	monofocal	C loop	capsular bag	asphere	correcting	-0.1	✘ no	-10to40(1) 10to30(0.5)				120.0¹	1.8 0.4 0.1¹	5.96¹	2.2¹	119.7¹		1.8626 0.4 0.1³	6.0³	2.26³	119.783³

¹ These lens constants are provided by manufacturer or distributor. They could be optimized.

² These lens constants are optimized by the ULIB platform by courtesy of professor Wolfgang Haigis.

³ These lens constants are optimized by IOL Con.
Our calculations are based on formulas published by Haigis W; Hoffer KJ; Holladay JT; Olsen T; as well as Kraff MC, Retzlaff JA, Sanders DR; and Hoffmann P, Langenbucher A, Wendelstein J.

⁴ These lens constants are optimized by IOL Con using different APIs provided by Cooke DL and others.

^N These lens constants where updated in the last two weeks.

Power as sphere and cylinder. Power as equivalent and cylinder.

Less than 100 clinical results. Between 100 and 500 clinical results. 500 or more clinical results.
